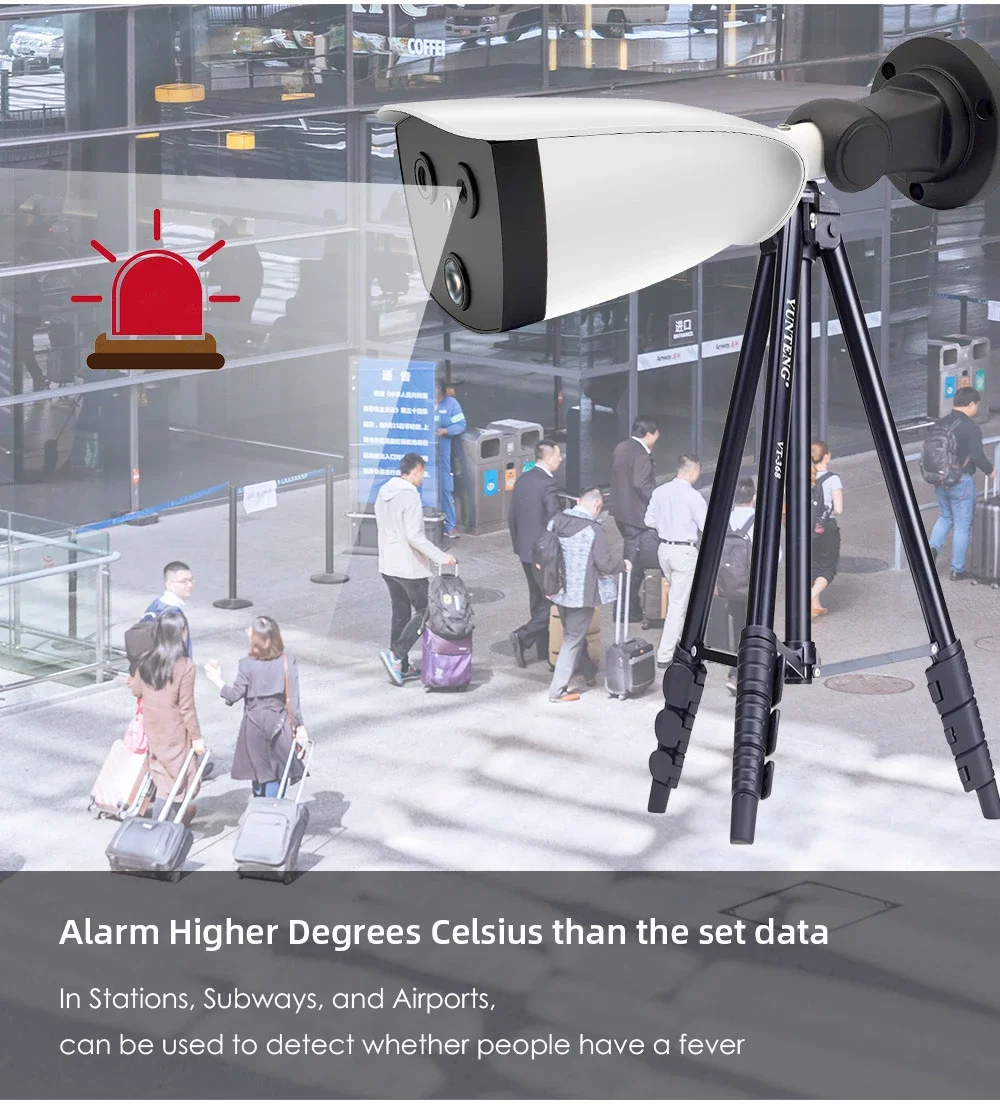

Quick AI Thermal Imaging Measurement Terminal Temperature Alarm Camera
Roll over image to zoom in
$1,053.00$1,316.25 (-20%)
Place of Origin: China
Brand Name: LANEBO
Model Number: LB-R01
Data Storage Options: Cloud
Video Compression Format: H.265
Image Sensor: Vox Uncooled Focal Plane Arrays
Resolution: 256*192
NETD: <60mk(@25℃,F#=1.0)
Aperture: F1.0
Field of View: Field of View
Language: English
Power: DC12V,0.65A
Protection Level: IP66
Dimension: 246 mm x 101 mm x 81 mm (with bracket)
Weight: Approx. 1.0 kg
Sensor: CCD
Special Features: PAN-TILT, Face Recognition
Specification
|
Product Name
|
Quick AI Thermal Imaging Measurement Terminal Temperature Alarm Camera
|
|
|
Thermal |
Image sensor
|
Vox Uncooled Focal Plane Arrays
|
|
Resolution
|
256×192
|
|
|
Pixel Interval
|
12pm
|
|
|
NETD
|
Less than 60 mK (@25°C.F#=1.1)
|
|
|
Aperture
|
F1.0
|
|
|
Field of View
|
35° x 27° (H x V)
|
|
|
Optical |
Image Sensor
|
1/2.8″ 2.0M Pixel CMOS
|
|
Resolution
|
1920x1080P
|
|
|
Min. Illumination
|
Color: 0.005Lux @ (F1.2, AGC ON), B/W 0.001 皿@ (F1.2, AGC ON)
|
|
|
Field of View
|
84° x 45° (H x V)
|
|
|
Focal Length
|
4mm
|
|
|
Shutter Speed
|
1s to 1/100,000s
|
|
|
White Balance
|
Auto/Manual/ATW (Auto-tracking White Balance)/lndoor/Outdoor/Daylight Lamp/Sodium Lamp
|
|
|
Day& Night
|
ModeiR cut filter with auto switch
|
|
|
WDR
|
80 dB
|
|
|
Feature |

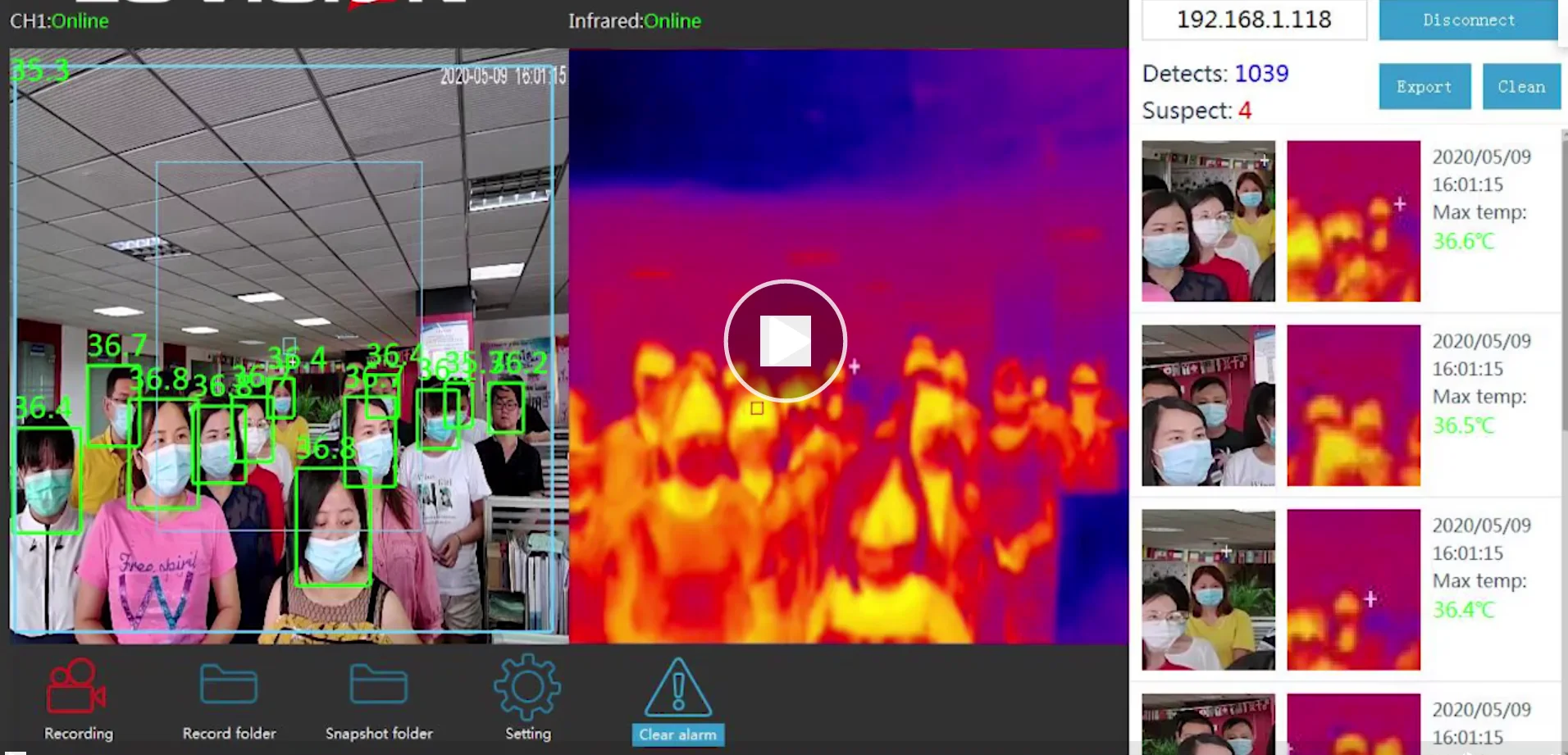

Bi-spectrum Image Fusion
|
Fusion view of thermal view and overlaid details of the optical channel
|
|
Picture in Picture
|
Combines details of thermal and optical image PIP, overlay thermal image on optical image
|
|
|
Smart Function
|
Face snapping
|
Built-in deep learning Al algorithm, Supports simultaneous detection of
20-30 faces |
|
Temperature Measurement
|
Support global and local temperature
|
|
|
Temperature Range
|
From-15°C to +150°C
|
|
|
Temperature Accuracy
|
Target temperature 35°C A 38°C ±0.3 °C
Target temperature 20°C A 33°C ±0.6 °C Target temperature 38°C A 50°C ±0.6 °C |
|
|
Network |
Main Stream
|
Thermal: 25fps(1920 x 1080, 1280 x 720)
|
|
Sub Stream
|
Thermal: 25fps(704 x 576, 352 x 288)
|
|
|
Video Compression
|
H.264 (Baseline/Main/High Profile) /MJPEG/H.265
|
|
|
Audio Compression
|
G 711u/G711a/G.7221/MP2L2/G.726/PCM
|
|
|
Protocols
|
TCP/IP, ONVIF, GB/T 28181, DHCP. RTP, RTSP,PPPoE UPnP, UDP
|
|
|
API
|
ONVIF (Profile S, Profile G, Profile T), SDK
|
|
|
General |
Web Client Language
|
English
|
|
Power
|
DC 12V, 0.65A
|
|
|
Work Temperature/H umidity
|
From -20°C to 55°C; Humidity: 95% or Less
|
|
|
Protection Level
|
IP66
|
|
|
Dimension
|
246 mm x 101 mm x 81 mm (with bracket)
|
|
|
Weight
|
Approx. 1.0 kg
|
Product Description
Packing & Delivery
To better ensure the safety of your goods, professional, environmentally friendly, convenient and efficient packaging services will be provided.
Additional information
| Protection Level | IP66 |
|---|---|
| Place of Origin | China |
| NETD | <60mk(@25℃-F#=1.0) |
| Data Storage Options | Cloud |
| Video Compression Format | H.265 |
| Dimension | 246 mm x 101 mm x 81 mm (with bracket) |
| Model Number | LB-R01 |
| Aperture | F1.0 |
| Weight | Approx. 1.0 kg |
| Special Features | PAN-TILT- Face Recognition |
| Brand Name | LANEBO |
| Language | English |
| Image Sensor | Vox Uncooled Focal Plane Arrays |
| Field of View | Field of View |
| Power | DC12V-0.65A |
| resolution | 256*192 |
| Sensor | CCD |
